| Place of Origin: | China |
| Brand Name: | ForeAmp |
| Certification: | CE ISO |
| Model Number: | SN695 |
| Minimum Order Quantity: | 1 sets |
|---|---|
| Price: | 3000 |
| Packaging Details: | Packing in safe carton box |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 2000 sets per year |
| Product Name: | ForeAmp-SN695 PCR Machine Lab Fast Gradient PCR Machines DNA PCR Thermal Cycler | Material: | Die-casting Aluminum Housing |
|---|---|---|---|
| Input Voltage: | AC100~240V Input Options | Operating System: | Android |
| WIFI Module: | Built-in WIFI Module | Screen: | 10.1 Inch,1024x600 Pels LED |
| Cover System: | Press Rod Type Heat Cover | Certificates: | CE ISO9001 |
| Heating System: | Peltier Heating Units | Application: | Lab |
| High Light: | ForeAmp - SN695 DNA Thermal Cycler,PCR Thermal Cycler AC100V,ForeAmp - SN695 PCR Thermal Cycler |
||

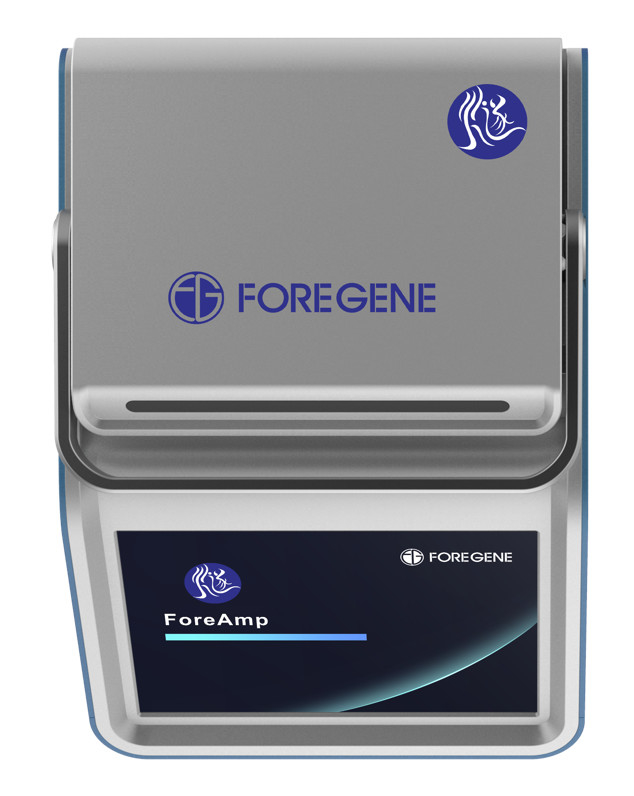

ForeAmp-SN695 PCR Machine Lab fast gradient PCR machines DNA PCR Thermal Cycler
Description:
ForeAmp series thermal cycler has
1.Good temperature accuracy and uniformity: The patented composite cooling system combining liquid cooling and air cooling improves temperature accuracy and uniformity;
2.No edge effect: The patented module design can effectively prevent the evaporation of the edge hole, and the experiment repeatability and accuracy are better;
3. Space saving: The special instrument structure and air inlet and outlet design can be stacked and accessed horizontally at close range, saving space;
4. Reduce non-specific amplification: During the heating process of the hot lid, the reaction module is turned on at a low temperature of 8 °C to reduce non-specific amplification;
5. Easy to operate: The interface is simple and easy to operate, the instrument presets the common reaction temperature, and the reaction program is easy to edit.
Feature
♦Built- in11standardprogramfiletemplate,canquicklyedit
therequiredfiles .
♦The running program and left time can be displayed in real time , allow to edit file when program is running .
♦ One-click quick incubation function can meet experiment’s needs such as denaturation , enzyme cutting/enzyme- link and ELISA
♦ Hotlidtemperatureandhotlidworkmodecanbesetto meetdifferentexperiment’sneed .
♦ Automaticrestartafterpowerfailure.Whenpoweris restoreditcancontinuetorununfinishedprogram .
♦ SupportUSBtostoreandcopyPCRdata,usercancontrol PCRbyUSBmouse .
Specification
|
Model No. |
ForeAmp- |
ForeAmp- |
ForeAmp-SN695(384) |
ForeAmpe-SD696 |
ForeAmp- |
||
|
Capacity |
96×0.2ml |
96×0.2ml |
384 well |
6×16×0.2ml |
96×0.2ml |
||
|
Tube |
0.2ml tube, 8 strips, |
0.2ml tube, 8 strips, |
384 well plate |
0.2ml tube, 8 strips, |
|||
|
Temperature Range |
0-105℃ |
||||||
|
MAX. Ramp Rate |
5℃/s |
6℃/s |
5℃/s |
6℃/s |
8℃/s |
||
|
Uniformity |
≤±0.2℃ |
||||||
|
Accuracy |
≤±0.1℃ |
||||||
|
Display Resolution |
0.1℃ |
||||||
|
Temperature Control |
BlockTube |
||||||
|
|
0.1-5℃ |
0.1-6℃ |
0.1-5℃ |
0.1-6℃ |
0.1-8℃ |
||
|
Gradient Temp. Range |
30-105℃ |
|
|||||
|
Gradient Type |
Nolinear Gradient |
Dynamic Gradient |
Two-Dimensional Gradient |
||||
|
Gradient Spread |
1-42℃ |
six zone,each zone is 0.1-5℃. |
Horizontal:1-30℃ |
||||
|
Hot Lid Temperature |
30-115℃ |
||||||
|
Number of Programs |
20000 +(USB FLASH) |
||||||
|
Max. No. of Step |
30 |
40 |
|||||
|
Max. No. of Cycle |
100 |
||||||
|
Time Increment/Decrement |
1 Sec - 600 Sec |
||||||
|
Temp. Increment/Decrement |
0.1-10.0℃ |
||||||
|
Pause Function |
Yes |
||||||
|
Auto Data Protection |
Yes |
||||||
|
Hold at 4℃ |
Forever |
||||||
|
Touchdown Function |
Yes |
||||||
|
Long PCR Function |
Yes |
||||||
|
Language |
English |
||||||
|
Computer Software |
Yes |
||||||
|
Mobile phone APP |
Yes |
||||||
|
LCD |
10.1 inch,1024×600 pels |
||||||
|
Communication |
USB2.0 , WIFI |
||||||
|
Dimensions |
385mm× 270mm× 255mm (L×W×H) |
||||||
|
Weight |
10kg |
10kg |
17kg |
||||
|
Power Supply |
100-240VAC , |
100-240VAC , |
100-240VAC , |
||||
Applications:
1.Gene amplification for research and clinical use
2.Qualitative PCR gene amplification
3.Fluorescent/Enzyme-Free Endpoint Quantitative DNA Gene Amplification
4.Gene amplification for other gene analysis applications such as microarrays
5.Suitable for various PCR kits at home and abroad for infectious diseases (various hepatitis viruses, Mycobacterium tuberculosis, STD sexually transmitted diseases, prenatal and postnatal care, mycoplasma, chlamydia, parasites, etc.), tumors (P53, Helicobacter pylori, etc.), scientific research (Genetic identification, bacterial virus typing, etc.)
